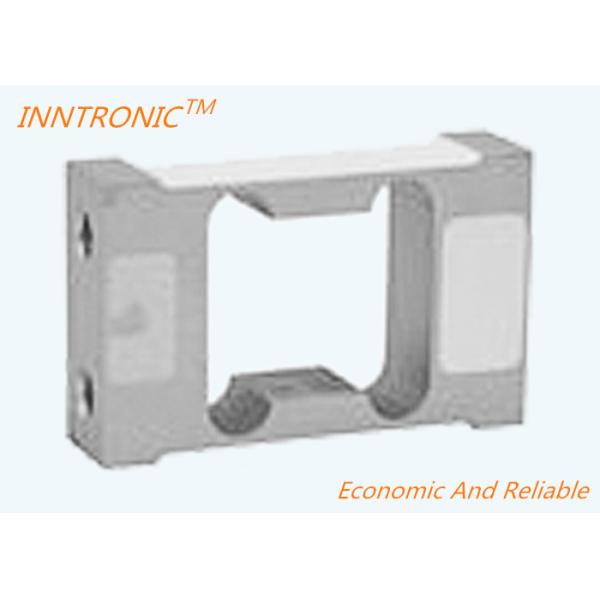

IN-651F Load Cell 8kg C3 Single Point Weight force sensor For Weighing Machine For Eletronic Pricing Scale IP66

Name: IN651F Load Cell 8kg C3 Single Point Weight force sensor For Weighing Machine For Eletronic Pricing Scale IP66
Brand: inntronic
Price: 1 USD

Brand Name : inntronic

Model Number : IN-651F

Place of Origin : China

MOQ : 1pc

Payment Terms : L/C

Delivery Time : 15-30 days

Price : Negotiable

Certification : CE

Pattern : Single Point Load Cell

Capacity : 4kg 5kg 8kg 10kg 15kg 20kg

output : 2mv/v

Material : Aluminum

Application : eletronic peicing scale, electronic package scale

interchangeable brand : HBM

IP protection : IP66

Accuracy : OIML R60 C3

Nonlinearity : 0.017%

size : 80*20*50

Contact Now

IN-651F 4 5 8 10 15 20kg Single Point Load Cell for eletronic peicing scale

IP66 Protection Single Point Load Cell Easy Installation For Eletronic Peicing Scale

Good quality with competitive price.

capacity:4kg 5kg 8kg 10kg 15kg 20kg

complies with OIML R60 C3 regulations
IP66 protection
Off-center load compensated
single point 200*200 platform
suitable for eletronic peicing scale, electronic package scale and other electronic weighing devices.

Dimensions
Rate Capacity	L	L1	W	H	H1	T
kg/mm
4-20	80	60	20	50	28	M8
lb/inches(conversion of above dimensions)
8.82-44.09	3.15	2.36	0.79	1.97	1.1	M8

SPECIFIATIONS
Full Scale Output	1.0±20%mV/V	Recommed Excitation	10V(15V Maximnm)
Zero Balance	±0.04mV/V	Reference Max.Platform Size	200*200mm
Nonlinearity	<±0.017%	Insulation Resisitance	>2[50V DC]GΩ
Repetability	<±0.017%	Nominal Temperature Range	-10℃to40℃/14℉to104℉
Hysteresis Error	<±0.017%	Safe Overload	150% of full scale
Creep in 30 min	<±0.02%	Breaking Overload	300% of full scale
Input Resistance	405Ω±10	IP Rating	IP66
Output Resistance	350Ω±3	Cable Color Code	Exc+:Red;Exc-Black;Sig+Green;Sig-:White Shidld Bare
Element Materia	Aluminum

IN-651F Load Cell 8kg C3 Single Point Weight force sensor For Weighing Machine For Eletronic Pricing Scale IP66
